H32ECOSLIM

Electrically operated swaging machine 175 tons H32ECOSLIM

H32ECOSLIM-QC-1 380V 3PH 50 Hz version
H32ECOSLIM-QC-1PH-1 220V 1PH 50 Hz version

Description

Swaging machine with hose capacity up to 1 1/1” (4 wire). The machine is already equipped with a rack with ten die pots , a buttons control panels and anintegrated electric quick-change tool. Available in two different configurations

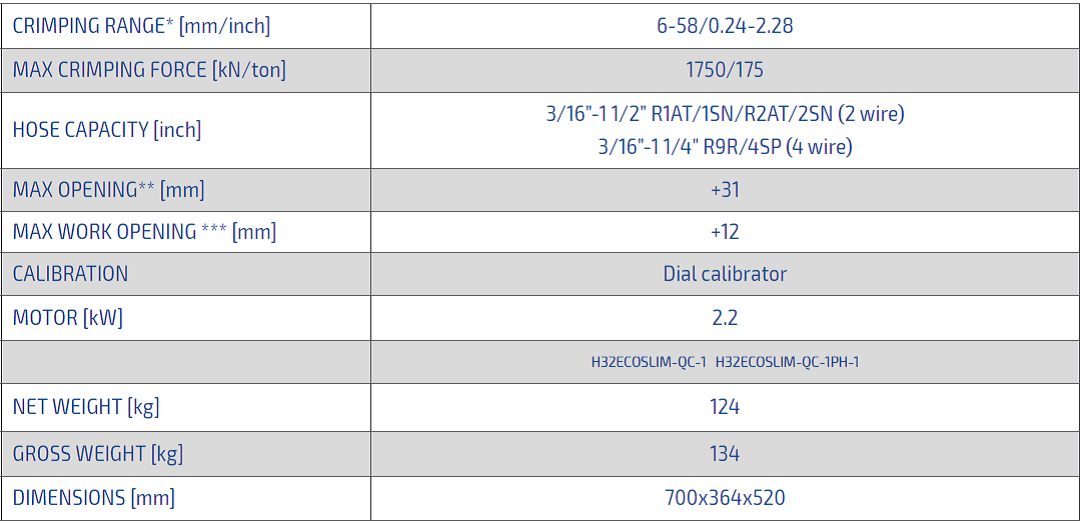

Product features and specifications

* With standard die sets. For specific applications, special die sets are available on request.
** The maximum opening of the machine is the result of the sum of this value and the nominal size number of used master die set.
*** The maximum working diameter is the result of the sum of this value and the nominal size number of used master die set.
